| Customization: | Available |
|---|---|
| After-sales Service: | 10 Years |
| Warranty: | 5 Years |
| Availability: | |
|---|---|
| Quantity: | |

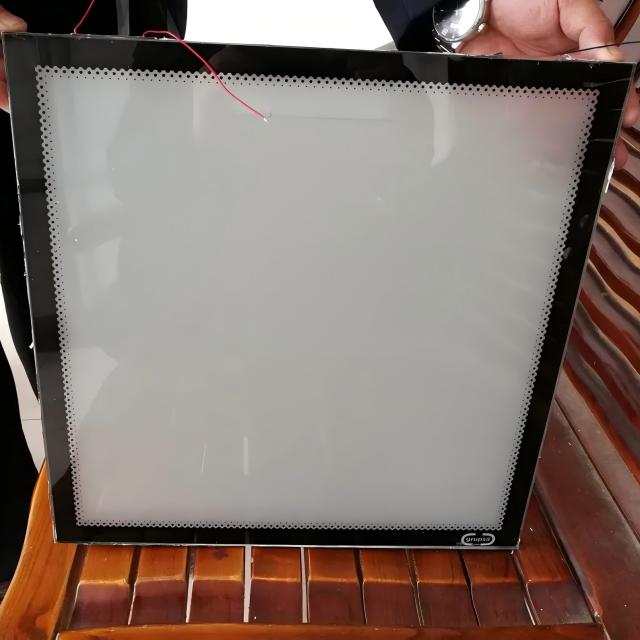

| Switchable Smart PDLC Glass Test Result / Description | Status | Data | Remarks | |
| Optics | Parallel Light Transmission | on | > 81% | GB5137.2-2002 |
| off | < 4% | |||
| Visible Light Transmission | on | >81% | GB/T 2680-94 | |
| off | > 50% | |||
| Shading Coefficient | on | 0.86 | GB/T 2680-94 | |
| off | 0.67 | |||
| U.Value | on/off | 5.05W/m2•k | ||
| Haze | on | < 5% | GB/T 2410-2008 | |
| off | > 95% | |||
| UV Block | on/off | > 98% | / | |
| viewing angle | on | > 160 | / | |

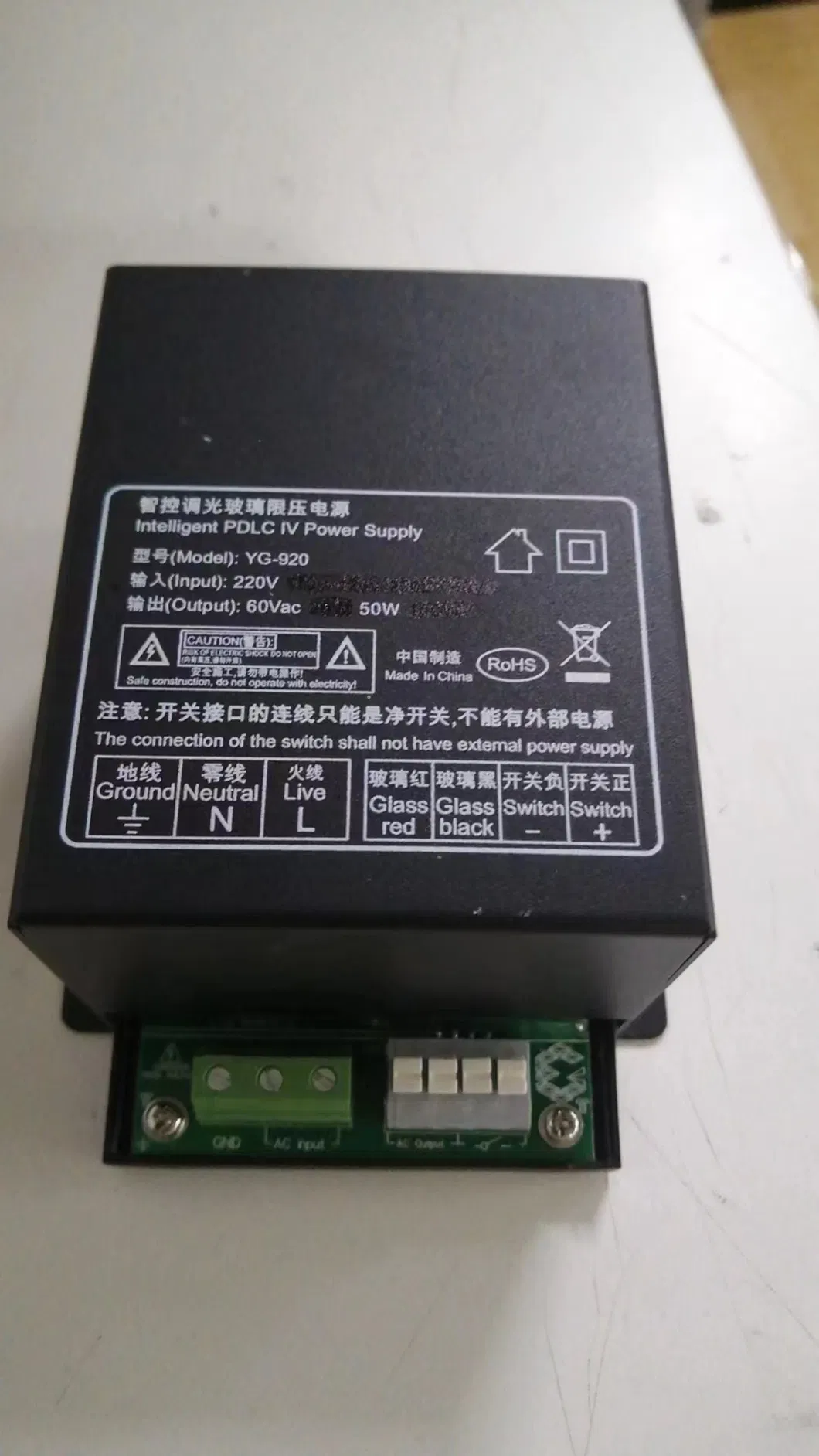

| Electrical | Power voltage | on | 60VAC | multimeter |
| Response time | on → off | < 200ms | Liquid crystal measuring instrument | |
| off → on | < 45ms | |||
| Power consumption | on | < 5W/ M 2 | electrical measuring instrument | |
| Environment | Work Temperature | on/off | - 10ºC to + 60ºC | Far from heat, chemical, liquid, wet. |
| Storage Temperature | / | - 20ºC to + 50ºC | ||
| Humidity | / | < 85% | ||
| Duribility | Life time | / | > 80000 Hours | / |
| Switch time | / | > 2 to 5 million | / | |
| peel strength | / | pass | GD15763.3-2009 | |
| Energy | Sound Insulation | / | > 35 dB | GB18910.1-2002 |
| Heat Insulation | / | > class 2 | GB8484-2008 | |
| PDLC Glass | Thickness | Size | Length/width/curve tolerance | |
| Clear Glass | 5mm/6mm/8mm/10mm+1.5mm (EVA/PDLC Film)+5mm/6mm/8mm/10mm | Max. 1.5*4.2 M | GB15763.3-2009 | |
| Tempered glass | 5mm/6mm/8mm/10mm+3mm (EVA/PDLC Film)+5mm/6mm/8mm/10mm | Max. 2.1*4.8 M | ||
